Boot from CD/USB flash drive

Boot

Insert the "Green Pepper Pro" product CD-ROM or the created bootable CD / USB flash drive into your computer, and turn on the power.
The system will start and the screen will look like the one below.

* To create bootable CD, see "Creating bootable "CD image" file"
* To create bootable USB flash drive, see "Setting bootable "USB flash drive"

The boot screen differs depending on the Legacy(BIOS) / UEFI boot. The processing after startup is exactly the same.

* Screen when booting in Legacy(BIOS)

* Screen when booting for UEFI (In the case of secure boot, the background image may not be displayed)

If the PC does not boot or the OS installed on the hard disk boots
・ Check the Legacy(BIOS) / UEFI settings. The boot priority of the CD / USB flash drive may be low.
see "Setting the boot environment on BIOS/UEFI"
・ The created CD-R may not have been created correctly for booting.
see "How to create a CD from an image file"
・ The type of USB flash drive you have set may not match your PC.
see "Setting the boot environment on BIOS/UEFI""Setting bootable "USB flash drive""
・ Your PC may not support booting from the CD / USB flash drive.
see "Setting the boot environment on BIOS/UEFI"
・ A message will be displayed at startup, and some models will not start from a CD unless the specified key is pressed at that timing.
example: "Press any key to boot from CD..." message appear at boot time.

Operation on the boot screen - Legacy(BIOS) boot

Normally, even if you do nothing, it will automatically start the startup process after 5 seconds.
Press the [enter] key to start immediately.

If there is a network function setting, it will be displayed as follows.
Green Pepper [NET], Wait 5sec ...
If there is a Wi-Fi network function setting, it will be displayed as follows.
Green Pepper [NETW], Wait 5sec ...

* The screen may not switch immediately after [enter], such as when media access is slow, but please wait for a while.
* If you enter one character within 5 seconds, the automatic startup will stop.

Select other option

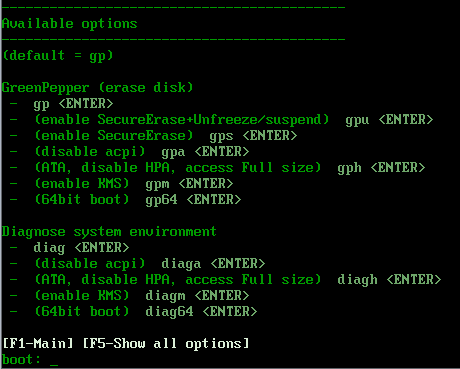

The available options are displayed by pressing the "F5" key within 5 seconds.
* Once the screen is switched, the automatic startup will be stopped.

The following is the one when boot from the "product CD-ROM" or created bootable CD with default option.
The options that can be selected depend on the option specifications when creating a bootable CD / USB flash drive.
see "Common options"

input contents

gp Display normal erase screen

gpu Display erase screen with Secure Erase menu

Before the menu is displayed, suspend/resume processing is performed to unfreeze the ATA drive.
*If there is no frozen ATA drive, suspend processing will not be performed.
* Suspend processing may not be performed when the video driver is not supported. *
If the video driver is not compatible enough, the screen may remain black and nothing will be displayed. If so, don't select tion option.

gps Display erase screen with Secure Erase menu

gph Disable HPA(HostProtectedArea) and erase entire disk.
* Depending on the disk interface, such as when connecting to a USB interface, HPA cancellation may not be effective.
see "Points to consider about erasing method"

gpa Start with ACPI disabled
* On a general PC, the disk may not be recognized and the power may not be turned off automatically.

gpm Enable Kernel Mode Setting (KMS).
If there is a problem with the display, please try it.

gp64 Start using 64bit kernel

diag Diagnose: Problem investigation screen to check the status when startup is not completed
or disk is not recognized.

diagh Diagnose: Disable HPA(HostProtectedArea) and show problem investigation screen.
* Depending on the disk interface, such as when connecting to a USB interface, HPA cancellation may not be effective.

diaga Diagnose: Start problem investigation screen with ACPI disabled
* On a general PC, the disk may not be recognized and the power may not be turned off automatically.

diagm Diagnose: Enable Kernel Mode Setting (KMS).
If there is a problem with the display, please try it.

diag64 Diagnose: Start problem investigation screen using 64bit kernel

If the startup is not completed

If the startup is not completed and the erase screen is not displayed, the following causes are possible.

・ The hardware is not compatible with this product.
* Not compatible CPU, motherboard, and peripheral devices.
* Please remove peripheral devices and try again.
* If there is a device that can be separated by the BIOS, try disconnecting it.
・ Media failure (CD-ROM, USB flash drive)
・ Other hardware failures

Please try starting with "gpa" (disable ACPI) etc. from the above selection menu at startup.

Also, start with "diag" and let us know the contents of the screen at the time of stop.

If the startup stops halfway and the menu is not displayed, there is no function to get the screen.
Please take a picture of the screen with a digital camera and send it to us.

For the operation of the screen displayed by the "diag" option, see "Using diagnose screen".

Operation on the boot screen - UEFI boot

"Green Pepper PRO" supports Secure Boot of many PCs, but if the Secure Boot specification of your PC is not supported , the following boot screen will not be displayed and a message such as a Security error will be displayed.
In that case, try disabling Secure Boot in the BIOS (UEFI) settings.

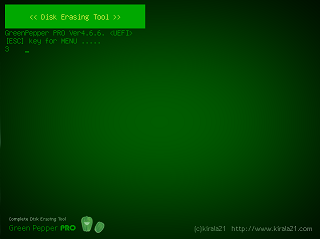

Normally, even if you do nothing, it will automatically start the startup process after 5 seconds.

[ESC]key for menu .....
4

If you want to start with other options, press the [ESC] key before the 5-second countdown ends.

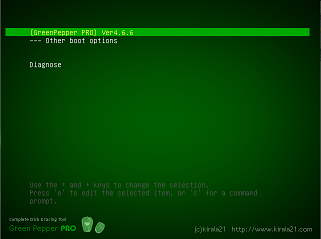

The following option menu screen is displayed.

If the "[ESC]key for menu" screen is not displayed and "loading system..." is displayed
・If you do not need to select any other options at startup, the program will run until the menu is displayed, so please use it as is.
・ If you need to select an option at startup, press and hold the [Esc] key immediately after the PC starts booting. A boot option selection menu will be displayed.

Operation on the option menu screen

Use the "Down" and "Up" keys to select a function, and the [enter] key to execute the option menu.
Under "---- Other boot options", a submenu will be displayed that allows you to select more detailed options.

1. Under the "[GreenPepper PRO] English ver4.xx" menu, when "--- Other boot options" is selected.

From this screen, press the [ESC] key to return to the first option menu screen.

Menu Structure
In the standard state, the menu structure is as follows.

The following is the one when boot from the product CD-ROM.
The options that can be selected depend on the option specifications when creating a bootable CD / USB flash drive.
See "Common options"

Option menu structure

selection menu contents

[GreenPepper PRO] Ver 4.x.x Display normal erase screen

--- Other boot options Boot option submenu

Diagnose Diagnose: Problem investigation screen to check the status when startup is not completed
or disk is not recognized.

Boot option submenu

selection menu contents

*--- (ESC)return to main, [GreenPepper PRO] * press the [ESC] key to return to the first option menu screen.

a.Normal boot Display normal erase screen

b.Enable SecureErase+Unfreeze(suspend) Display erase screen with Secure Erase menu

Before the menu is displayed, suspend/resume processing is performed to unfreeze the ATA drive.
*If there is no frozen ATA drive, suspend processing will not be performed.
* Suspend processing may not be performed when the video driver is not supported. *
If the video driver is not compatible enough, the screen may remain black and nothing will be displayed. If so, don't select tion option.

c.Enable SecureErase Display erase screen with Secure Erase menu

d.Ignore HPA, access full size Disable HPA(HostProtectedArea) and erase entire disk.
* Depending on the disk interface, for example, when connecting to a USB interface, HPA cancellation may not be effective.
see "Points to consider about erasing method"

e.disable ACPI Start with ACPI disabled
* On a general PC, the disk may not be recognized and the power may not be turned off automatically.

f.UEFI old mapping Set UEFI old memory mapping mode
* Use it when UEFI startup stops in the middle.

g.Disable UEFI (runtime) Disable runtime UEFI function
* Use it when UEFI startup stops in the middle.

h:Enable KMS (nodeset) Enable Kernel Mode Setting (KMS).
If there is a problem with the display, please try it.

Boot option submenu (diagnose)

selection menu contents

*--- (ESC)return to main, diagnose --- * press the [ESC] key to return to the first option menu screen.

a.Normal boot Diagnose: Problem investigation screen to check the status when startup is not completed
or disk is not recognized.

b.Ignore HPA, access full size Diagnose: Disable HPA(HostProtectedArea) and show problem investigation screen.
* Depending on the disk interface, such as when connecting to a USB interface, HPA cancellation may not be effective.

c.disable ACPI Diagnose: Start problem investigation screen with ACPI disabled
* On a general PC, the disk may not be recognized and the power may not be turned off automatically.

d.UEFI old mapping Diagnose: Start problem investigation screen with
UEFI old memory mapping mode
* Use it when UEFI startup stops in the middle.

e.Disable UEFI (runtime) Diagnose: Start problem investigation screen with
disabling runtime UEFI function
* Use it when UEFI startup stops in the middle.

g:Enable KMS (nodeset) Diagnose: Enable Kernel Mode Setting (KMS).
If there is a problem with the display, please try it.
