Using "Startup environment creation tool" -> Operation of "HDD boot

Operation of "HDD boot"

Execute the "Startup Environment Creation Tool" on the PC you want to erase, and install the "Boot up Erase Program" on the system hard disk of that PC.
When you restart your PC, the "Boot up Erase Program" will start and you can erase the hard disk of that PC.

Even if the HDD installation is completed and the "Boot up Erase Program" is started, the disk interface may not be supported or the network card may not be supported.
In that case, the disk cannot be erased or the network log cannot be written. Please use it on a PC with a model number whose operation has been confirmed in advance.

If the disk is not recognized by the "Boot up Erase Program" or cannot be started, start it with a CD / USB flash drive and erase the PC.



* This process rewrites the startup environment. By incorporating the erase program, you may not be able to start up Windows. Perform the process on the assumption that it will be deleted.
* If you are using 64-bit Windows and GPT partition / UEFI boot, use the UEFI boot system to boot.
* If you are using 32bit UEFI, 32bit Windows and GPT partition / UEFI boot, the CPU must be 64-bit compatible.
* When booting with the Legacy/BIOS, write the boot file to the system drive.
If the file system is encrypted (NTFS encryption or other software encryption), you will not be able to boot.

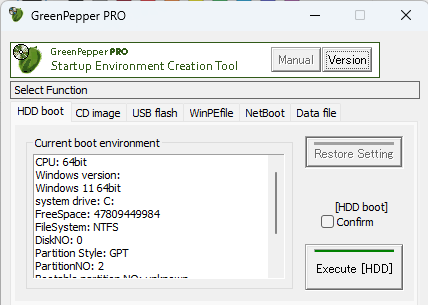

Current boot environment
Shows the current Windows boot environment. Based on the environment recognized here, it is judged whether or not the setting is possible when performing the embedded processing.
* Please let us know this information if you have any problems with the embedded process.

Options

For the options , see "Common options".

Execute [HDD]


Check "[HDD] boot confirm" and then click "Execute [HDD]". Executes the process of embedding in the hard disk.
* Processing will take some time. Please wait until the end message appears.

Items to check in the boot environment

The following items are checked. If a check error occurs,
boot "Boot up erase program" from the CD / USB flash drive and erase it.
Legacy(BIOS) boot
system drive System drive is "C"
file system File system on the system drive is NTFS
disk containing system drive The disk must be the first disk (0) on the system
partition style Partition style is MBR, not GPT.
partition NO. System is on partition 0-3.
bootable One of 0-3 partitions are bootable
(It may be different from the system)
Free space on C drive 65M or more free space
UEFI boot
Windows 64bit Windows
or
When 32bit Windows, 32bit UEFI and 64bit CPU.
disk containing system drive The disk must be the first disk (0) on the system
partition style Partition style is GPT, not MBR
Free space on UEFI partition 65M or more free space

Folder to be created
In the BIOS(Legacy) boot environment
c: \gp_boot
 folder will be created to save the current Windows startup environment as well as the erase program startup environment.
Do not delete or rewrite this folder if you have the possibility of returning to the previous Windows boot environment.
* If this folder is compressed or encrypted, it will not be able to start.

Restore setting

You can use this button in an environment where a boot environment for erasing has been set.
If you want to revert to the previous Windows boot environment, perform this process.
* Depending on the environment, it may not be possible to recover correctly.
Perform the installation work on the assumption that it will be erased.
