Operation of "Utilities for administrator -> Executing "Utilities for administrator"

Executing "Utilities for administrator"

The "Utilities for Administrator" can be easily executed without any prior installation work.
Follow the procedure below to execute it.

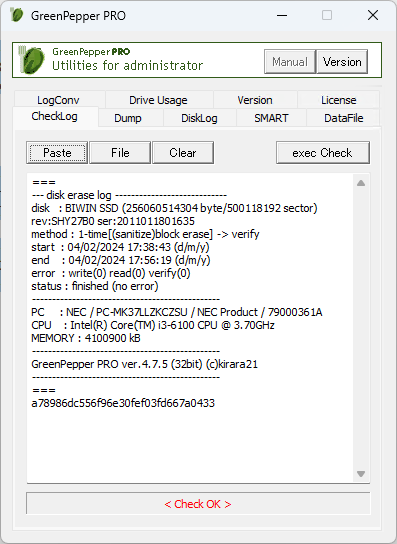

Double-click [gputil4.exe] to start it.

・ For online download, it is in the unzipped folder.
・ If provided on a CD-ROM, it is located on the product CD-ROM (root).

You can boot directly from the product CD-ROM, or copy it to a hard disk, network drive, etc. for use.


Administrator privileges required to run


Vista/7/2008 or later (include Windows10)
The following message will be displayed.

-------------------------------------------------------
Do you want to allow this app to make changes to your device?
-------------------------------------------------------
* The message varies depending on the Windows version.

* If you are logged on as a non-administrator,
  You will be required to enter the administrator user password.

Click (continue) "Yes" to boot.


About the [manual] folder

The "Manual" button on the upper right of the screen is enabled when the [manual] folder exists in the same folder as [gputil4.exe], and the manual will be displayed when the button is pressed.
If you want to display the manual with this button, you need to copy the [manual] folder along with [gputil4.exe].

*"index.html" in the [manual] folder is called. It is also possible to display any document.
when "disabled" when "enabled"

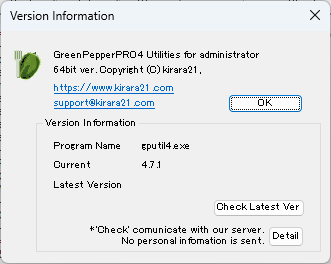

[Version] button

You can check the version currently in use and the latest version by clicking the [Version] button on the upper right of the screen.



Check Latest Ver
When you press this button, it communicates with our (kirala21) server and displays the latest version information on the screen.

* Customer-specific information (PC information, Windows information, etc.) will NOT be sent in this communication.
* Communicate via http. Please use it in an environment where you can access the Internet via http.

Detail
Click the [Detail] button to see the details of what is sent to the server.
No further information will be sent.
