Operation of "Utilities for administrator -> Operation of each function

Check log

"Check Log" checks the validity of the log file created by the "Green Pepper PRO" system.

Log file output

In the "Boot up erase program", the log is written to the hard disk, floppy disk, and USB flash drive after the erase process is completed.
The "Windows Erase Program" writes to the hard disk after the erase process is completed. In addition, it is output as a "End Report" in the erase process and read check process.

They are prepended with a "checksum" string (eg "92ae1655be5a5b95977863ac87c637a5").
This is to check that the log contents are output by "Green Pepper PRO" and that no single character has been changed since then.
If even one character in the log is changed, the internal characters and the checksum will be inconsistent, and it will be known that the log has been tampered with.

* Handle the log file in units of the contents between "===" (including itself) and the checksum character string on the next line.



Operation on the screen

Paste
Paste the log file that has been "copied" in advance to the screen.

File
Read the log file saved in the disk drive.

Clear
Clear the screen.

exec Check
Check the validity of the log file displayed on the screen.

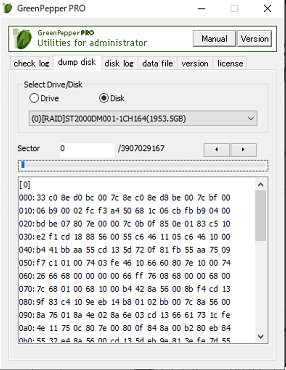

Dump disk


"Dump disk" is a function that displays the contents of the connected disk as they are.
You can actually see what the contents of the disk are now.



Operation on the screen

Select Drive/Disk
Select "Drive" unit (C, D, E, ...) or "Disk" unit (physical / RAID logical disk) unit.
From the drives / disks displayed in the list, select the disk you want to display.

Sector
The currently displayed sector number is displayed.
You can also display the contents of the specified sector by entering the sector number here.

Move Sector
You can move sector by any of the following methods.
*Enter the sector number you want to display in "Sector"
*Right of "Sector", press the left / right move button
*Operate the slider bar with the mouse under "Sector".

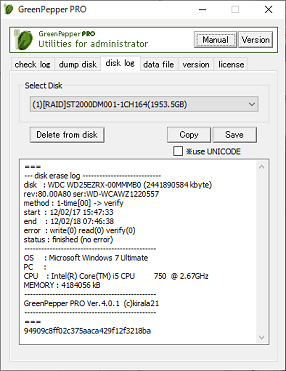

Disk log


"Disk log" is a function to read the log written to the hard disk drive.
The log is a file that was written directly to the hard disk drive by the "Boot up Erase Program" or "Windows Erase Program" after the erase process. It is written to the beginning area of the disk drive.



Operation on the screen

Select disk
Select the disk drive for which you want to view the logs.
If the log has been written, the contents will be displayed on the screen

Delete from disk
Erase the log from disk. Only the written part of the disk log is overwritten with zero.

Copy
Copy (to clipboard) the contents of the log.

Save
Save the contents of the log to a file.
If you check [* use UNICODE], the file will be saved with [UNICODE]. If unchecked, it will be [ANSI].

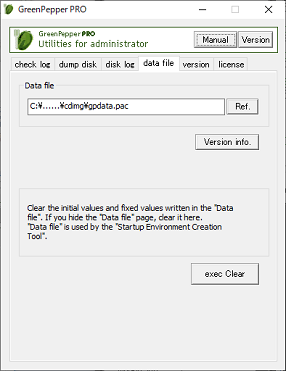

Data file


In "Data file", operate the data file (gpdata.pac) used in "Startup environment creation tool".

Operation on the screen

Data file
Specify the data file you want to operate. It can also be specified by clicking the "Ref." button.

Version Info.
Displays the version of the specified data file.

Net (0/1) ・ ・ ・ 1: Network (LAN, USB-LAN) log compatible data file 0: Not supported
WiFi (0/1) ・ ・ ・ 1: Network (WiFi) log compatible data file 0: Not supported

See Executing "Startup environment creation tool"/ "Data file" type

exec Clear
Clears the customization information written by the "Customizing/Setting data file " operation and returns the data to the initial state.
If you hide the "Data file" page of the "Startup environment creation tool", clear it by this operation, and then use the "Startup environment creation tool" again to set the data file.

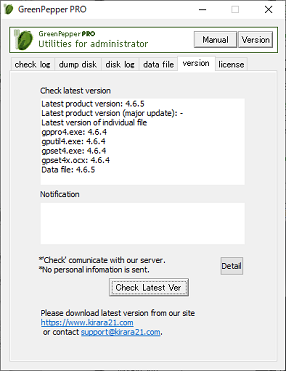

Version


"Version" confirms the latest version of the current "Green Pepper PRO" system.


Operation on the screen

Check Latest Ver
When you press this button, it communicates with our (kirala21) server and displays the latest version information on the screen.

* Customer-specific information (PC information, Windows information, etc.) will NOT be sent in this communication.
* Communicate via http. Please use it in an environment where you can access the Internet via http.

Detail
Click the [Detail] button to see the details of what is sent to the server.
No further information will be sent.



E-mail link for update

When you click the link of the e-mail address, your e-mail software will start and the recipient and subject will be set automatically.
As the text, the item name etc. of the content to be filled in will be displayed.
Please fill in the required information and send us an email.

You can also send us an email as usual instead of using this link. * It will not be sent by just clicking the link. To send, you need to send an email as usual.

License


In "License", you can check the currnet license status, activate/renew/reissue license file.

License status

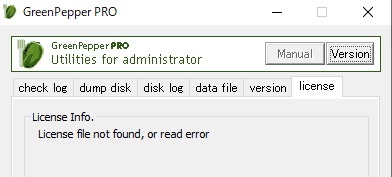

When NO valid license.  Initial state/ No license/ or license file read error.

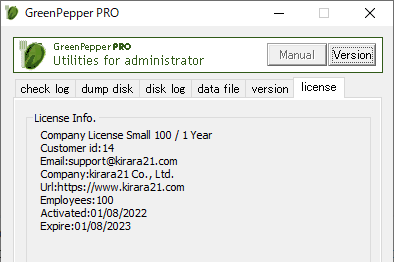

When license is VALID. (sample)


License Activation/Renew/Reissue

Please see 'About license, license activation' for details.
